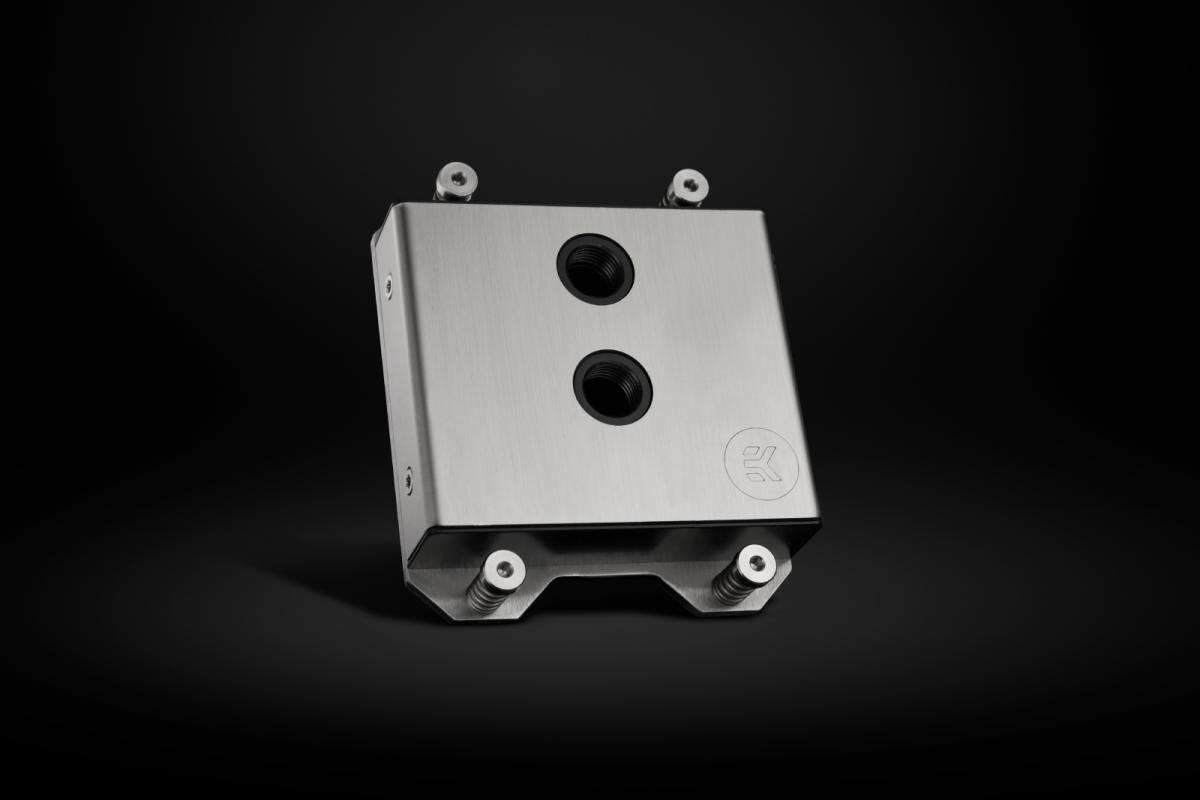

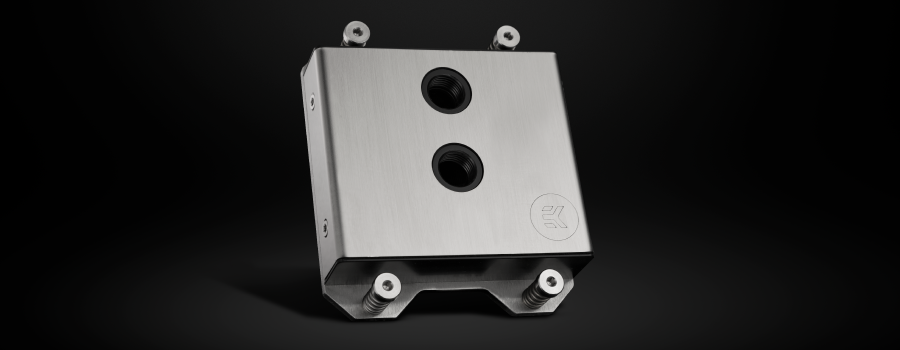

EK-Pro CPU WB AM5 Ni + Inox

The EK-Pro CPU WB AM5 Ni + Inox is a dedicated enterprise-grade water block specifically developed for AMD® AM5-based Ryzen processors. The EK-Pro CPU WB AM5 Ni + Inox water block features a total of 3 standard G1/4″ threaded ports located on the top of the water block and is intended for workstations and taller server racks.

This enterprise cooling solution is built with performance, reliability, serviceability, and no compromises in mind. This water block meets these demands with top thermal performance and unparalleled connectivity, making it the perfect choice for liquid cooling high-density computing systems.

The EK-Pro CPU WB AM5 Ni + Inox water block features a precisely machined copper base (coldplate) made from the purest copper available on the market and is treated with nickel electroplating. The top is CNC machined from durable black POM Acetal, and the hold-down bracket is made of laser-cut stainless steel.

Enclosed:

• EK-Pro CPU WB AM5 Ni + Inox water block
• 1x EK plug G 1/4”
• EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
• 1x Torx T30 Key - 1x 5mm Allen Key
• Thermal grease (1g)

Technical Specifications:

• Dimensions (L x H x W): 99 x 86 x 26 mm
• Materials: Nickel-plated copper, stainless steel, POM
• Mass (kg): 0.455
• Ports: 2 x G1/4”
• Mounting method: 2.5 mm Imbus/Allen key
• Working pressure: 2500 Pa
• Maximal working pressure: 30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
• Operating temperature range: 5 – 60 °C

Compatibility:

• AMD Socket AM5

Made in Slovenia - EU!
